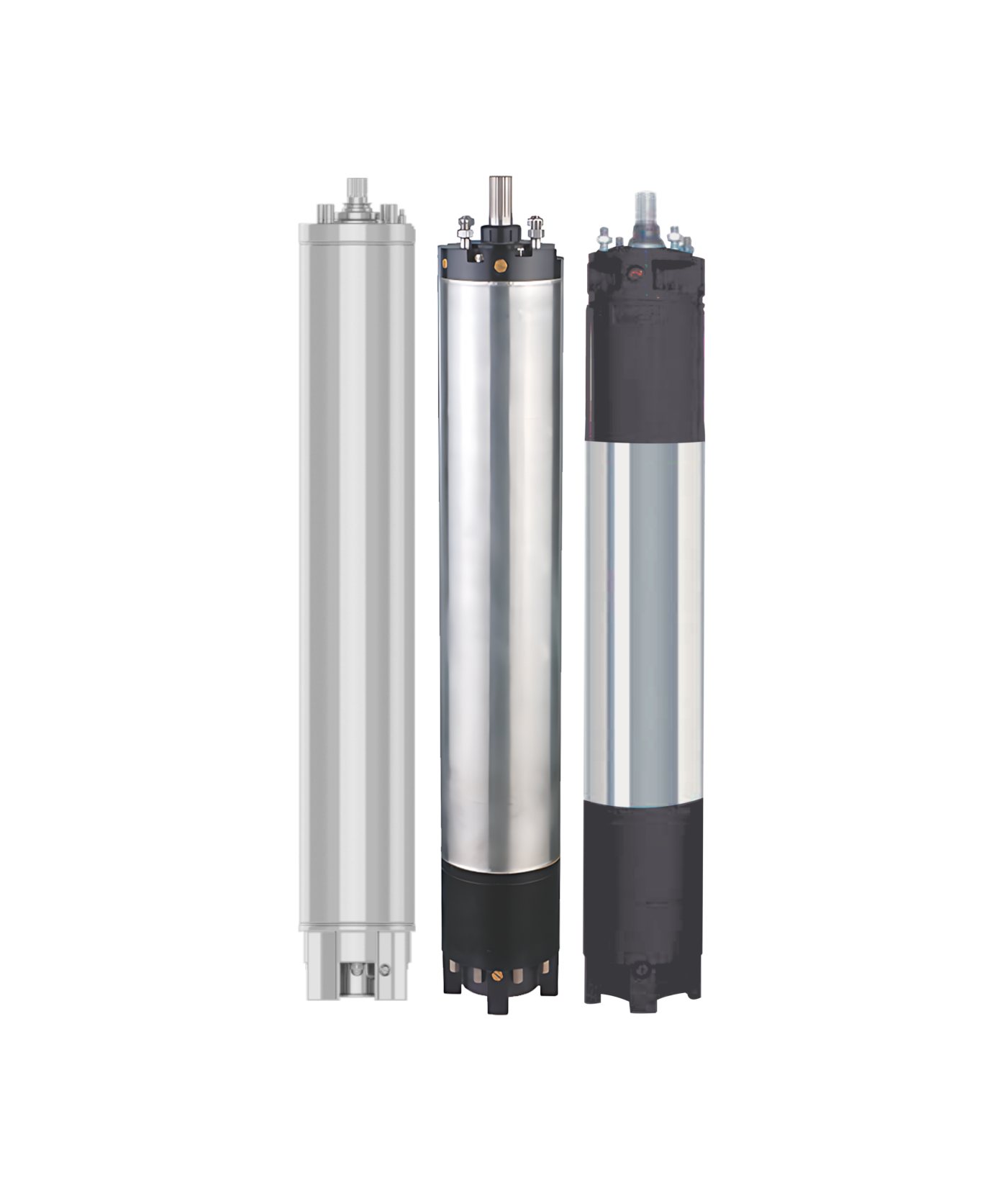

6-Inch Water Filled Submersible Motor (50Hz / 60 Hz)

6-Inch Water Filled Submersible Motor (50Hz / 60 Hz)

COACH Brand manufactured Submersible Motor by 100% stainless steel motor design with NEMA Standard. Motor are made with zero tolerance accuracy to get superior mechanical strength & reliability. Motor are sustainable in high voltage fluctuations and give higher efficiency. Motors are available both in 50 Hz and 60Hz.

Technical Specifications 50Hz 60Hz
Nominal Diameter 6-Inch 6-Inch
Coupling dimensions As per NEMA standard As per NEMA standard
Type of motor Water Lubricated rewindable motor Water Lubricated rewindable motor
Phase, Power Range Kw, Volt. Three Phase : 2.20 kW To 37.5 kW / 380-415 Volt/ 50 Hz. Three Phase : 2.20 kW To 37.5 kW/ 230 – 380 – 460Volt /60 Hz.
Speed 2900 rpm 2900 rpm
Degree of Protection IP 68 IP 68
Max.Temperature of Oil 35˚C 35˚C
Max. depth Immersion 350 Mtr 350 Mtr
Allowable voltage Variation +6% – 10% +6% – 10%.
Coolant Clear water Clear water

Sprinkler and drip Irrigation

Civil and Industries

Firefighting system

Agriculture

Buildings

Hospitals

Hotels
