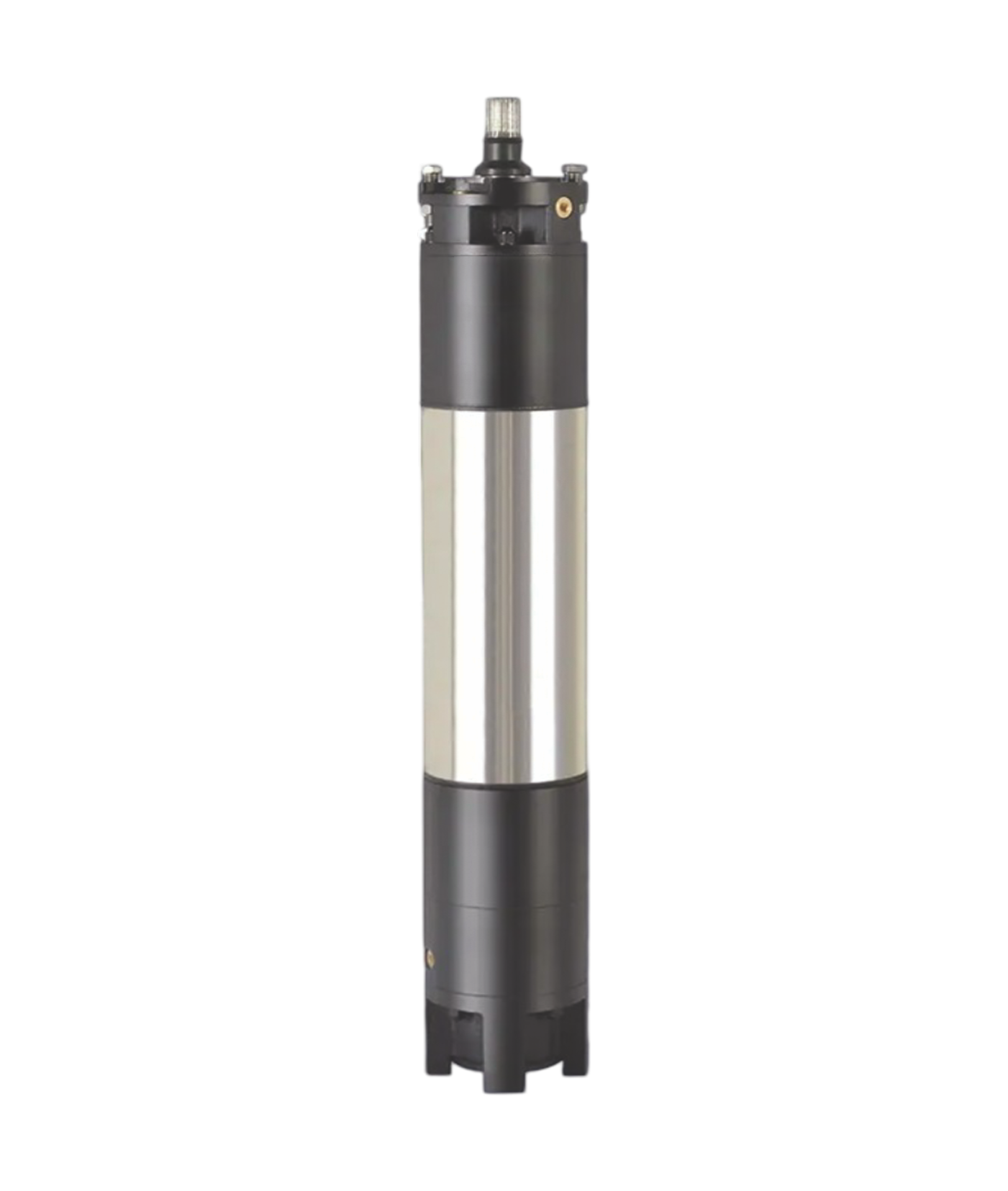

8-Inch Water Filled Submersible Motor (50Hz / 60 Hz)

8” Coupling dimension as per NEMA Standard
Motors are easy re-windable using multi-layer PVC insulated wire to get better reliability.
Motors are pre-filled with DI (De-ionized) Water+ Glycol mixture which is prevent to motor inside against corrosion also give better cooling to winding as well as bush.
Motors are leak proof to use of mechanical seal & rubber ‘O’ Ring at joints parts.
Self-aliened carbon Vs. Stainless steel thrust bearing which is withstand high axial thrust load in water lubrication.
8” motors are came with higher stack length for High cooling area, and give better heat dissipation capacity.
Motor Electrical design is more efficient at lower operating cost.
It is very durable against rusting & corrosion.
Non-Magnetic, Corrosion Resistance high grade stainless steel stator body.
Unique Design pressure diaphragm to ensure the pressure compensation inside the motor

Technical Specifications	50Hz	60Hz
Nominal Diameter	8-Inch	8-Inch
Coupling dimensions	As per NEMA standard	As per NEMA standard
Type of motor	Water Lubricated rewindable motor	Water Lubricated rewindable motor
Phase, Power Range Kw, Volt.	Three Phase : 22 kW To 55 kW / 380-415 Volt /50 Hz	Three Phase : 22 kW To 55 kW / 380-415 Volt /60 Hz
Speed	2900 rpm	2900 rpm
Degree of Protection	IP 68	IP 68
Max.Temperature of Oil	35˚C	35˚C
Max. depth Immersion	350 Mtr	350 Mtr
Allowable voltage Variation	+6% – 10%	+6% – 10%.
Coolant	Clear water	Clear water
